Magnetic Coolant Separator

The Coolant fluid with iron dust particles falling by gravity to the inlet of the separator from the precision machine tools such as Grinders, Milling Machines, Automats etc. The coolant with iron impurities come into contact with Magnetic Drum and extract all iron particles.

The Magnetic drum is kept clean at all times by a spring steel blade scrapping along the circumference. A Rubber roller squeezes the sludge's gathered to ensure that no coolant is wasted.

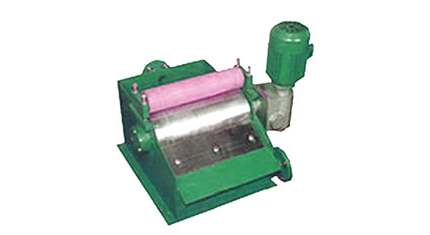

Magnetic Coolant Separator
Magnetic Coolant Separator

A sturdy welded Stainless Steel/M.s Frame.
A sturdy welded Stainless Steel/M.s Frame.
A Magnetic drum enclosed in stainless steel Drum having extra powerful Magnets with uniform Magnetic field all along the circumference.
A neoprene rubber roller with covered bearings.
A spring steel blade with adjustments for efficient scrapping of the sludge.
An electric motor working 440 Volts with a reduction gear revolving the drum at about 10 RPM.

We give below the standard models manufactured by us. However, custom made coolant separators can also be manufactured as per specific req.


Model No. Size Of Permanent Dia Magnetic Drum Length Capacity Per Min.
KI CM 701 125mm 130mm 50 Litres
KI CM 702 125mm 300mm 100 Litres
KI CM 703 150mm 530mm 200 Litres
